Description
Our Lithium Battery Equalizing Tester Series includes professional battery maintenance equipment designed for lithium battery cell testing, balancing, activation, and maintenance. The equipment supports constant current charging, constant voltage charging, constant current discharging, and constant power discharging.
These testers are widely used for:
- Battery cell balancing after battery pack replacement
- Battery capacity grading and screening
- SOC balancing before battery pack assembly
- Routine maintenance of lithium battery packs
- Battery performance testing and lifecycle testing
With high-precision voltage and current control, the equalizing tester ensures each battery cell operates within safe limits, improving battery pack consistency and extending overall battery service life.
Parameter
| Model Name | 1205 | 2405 | 2605 | 3605 | 4805 | 5205 | 6005 | 7205 |
| Channels/CH | cell *12 | cell *24 | cell *26 | cell *36 | cell *48 | cell *52 | cell *60 | cell *72 |
| Power supply | 220V/AC ±15% 50Hz | |||||||
| Voltage range | DC1.000V~5.000V | |||||||
| Current range | 0~5A adjustable | |||||||
| Maintenance modes | Parallel charging, parallel discharging, equalization&maintenance | |||||||
| Display | 7 inch LCD touch screen | |||||||
| Voltage accuracy | 5V@+0.05%FS±1mV | |||||||
| Current accuracy | 5A@±0.5%FS±10mA | |||||||
| Temperature | -10~65C@+2C | |||||||
| Connection modes | Reverse (negative), sequence (positive) | |||||||
| External communication | RS485/USB | |||||||
| Heat dissipation | Air cooling | |||||||
| Protection direction | Cross-connection, leakage, reverse connection, under-voltage, over-voltage | |||||||
Functional Characteristics
• Various kind of maintenance modes:
replenishment, discharging and equalizing , which is convenient to use in different working conditions.

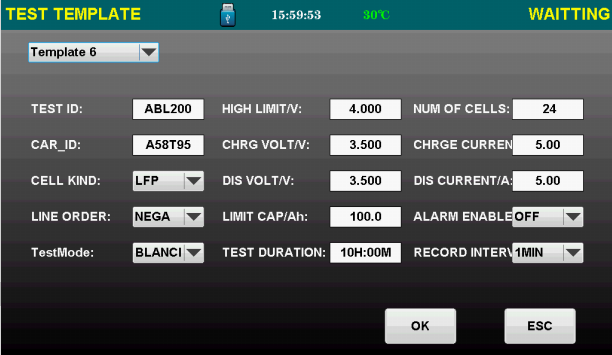

• Battery testing template presetting:
covers the maintenance of mainstream lithium batteries in the market.
• High performance equalizing:
the maintenance process supports end depolarization, which guarantees a highly consistent effect after equalization.
• Independent channels design:
without interfering with each other, ensuring that each battery cell will not be over-charged & discharged.
• Compact size:
Easy to carry, the equipment supports 1~6 channels to expand, and a single channel supports 12 strings of battery cells’equalization at the same time.
Unique Advantage
Stable repair:
Control accuracy that meets industry standards ensures long-term stability of the balancing effect.
Flexible and efficient:
Modular design + expansion function, suitable for battery packs as small as 12 strings and as large as 72 strings.
Smart and worry-free:
Preset templates + automatic mode, lower the operating threshold and improve maintenance efficiency.
Analysis of application Scenarios and necessity
Battery manufacturer after-sales service
Demand characteristics:
The pressure difference problem of the factory battery pack needs to be quickly repaired to reduce the return rate.
Product adaptation:
High-precision balancing + data recording function, accurately locate the problem battery cell, and provide a basis for after-sales report.
Necessity:
Avoid the overall scrapping of batch battery packs due to differences in monomers, and reduce the manufacturer’s losses.
Automobile factory / 4S shop maintenance
Demand characteristics:
Quickly solve the problem of reduced battery life of electric vehicles and improve customer satisfaction.
Product adaptation:
One-click operation, complete parameter setting in 10 minutes, and support multi-model battery template call.
Necessity:
Reduce vehicle battery replacement costs, extend battery life during the warranty period, and maintain brand reputation.
Energy storage power station maintenance
Demand characteristics:
Large-scale battery packs need to be balanced regularly to prevent thermal runaway risks.
Product adaptation:
Flexible configuration of 1~6 channels, single maintenance covers multiple groups of batteries, and supports parallel connection to improve current efficiency.
Necessity:
Ensure the stability of the energy storage system and avoid safety accidents caused by pressure difference accumulation.
Battery warehouse management
Demand characteristics:
After long-term storage, the voltage consistency of inventory batteries decreases and needs to be activated for maintenance.
Product adaptation:
The balanced mode automatically repairs the voltage difference and supports operation in low temperature environments (-20℃~50℃).
Necessity:
Improve the availability of inventory batteries and reduce resource waste.
