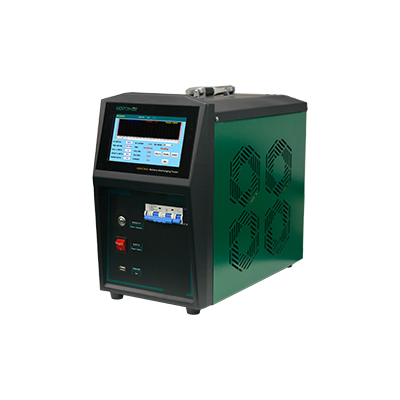

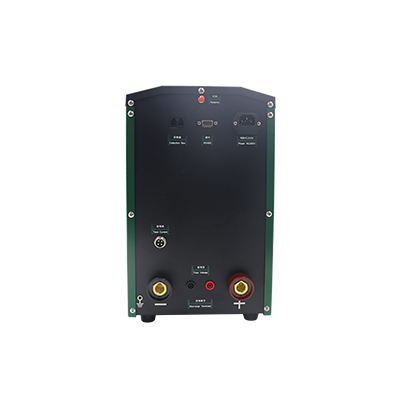

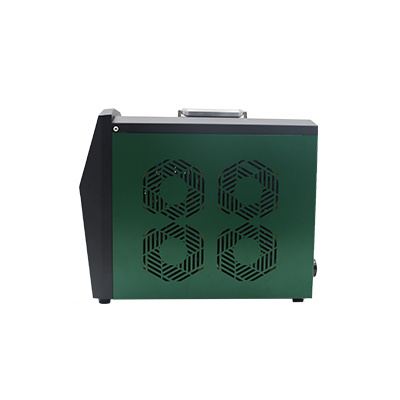

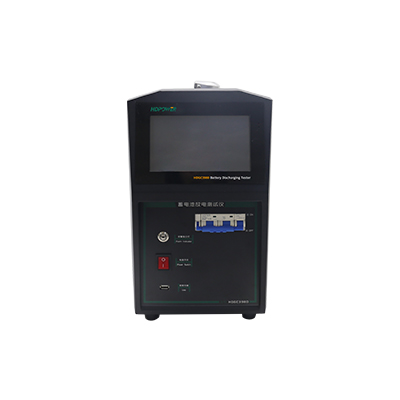

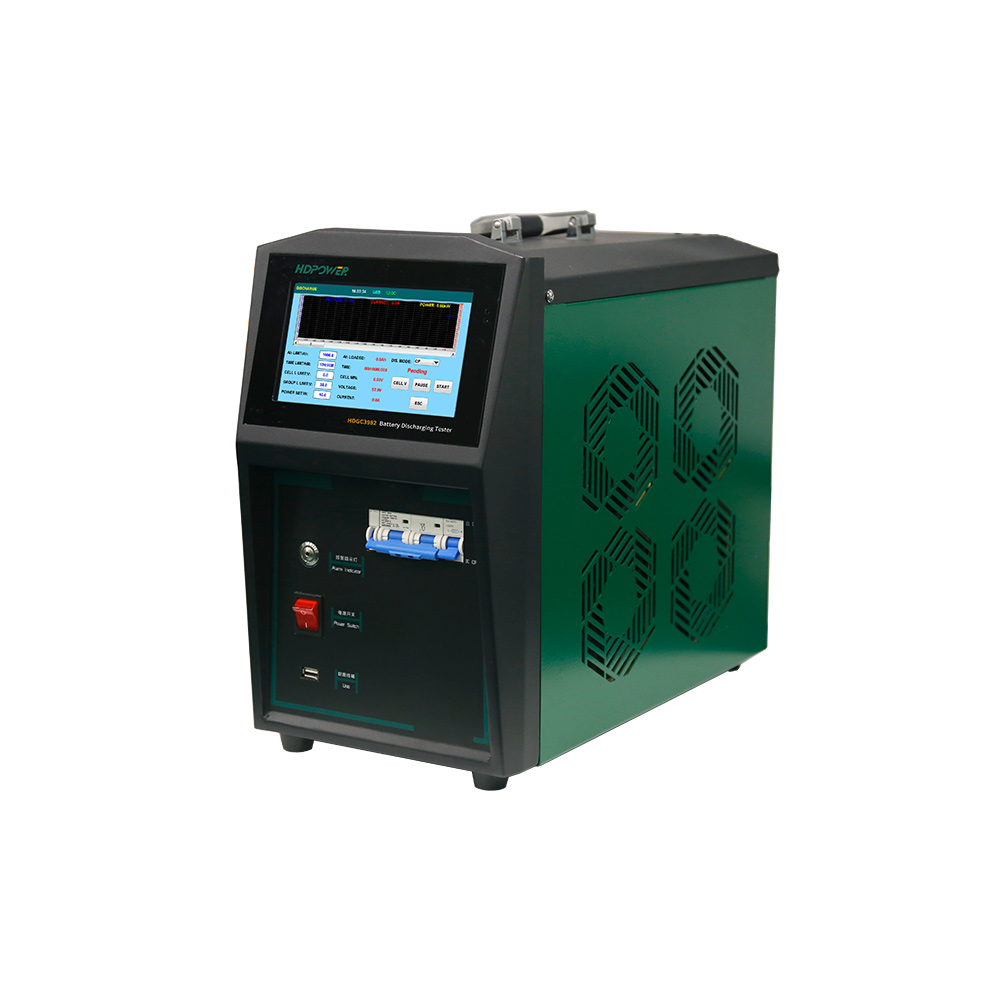

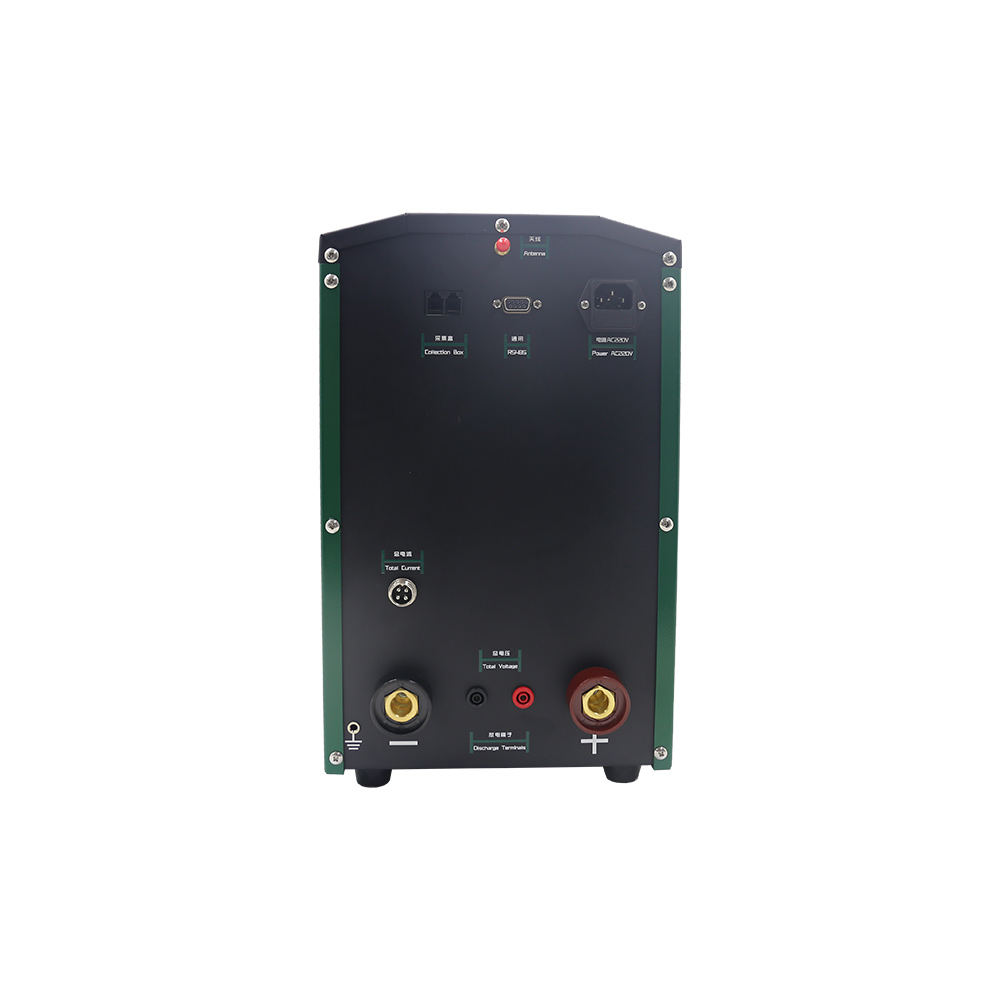

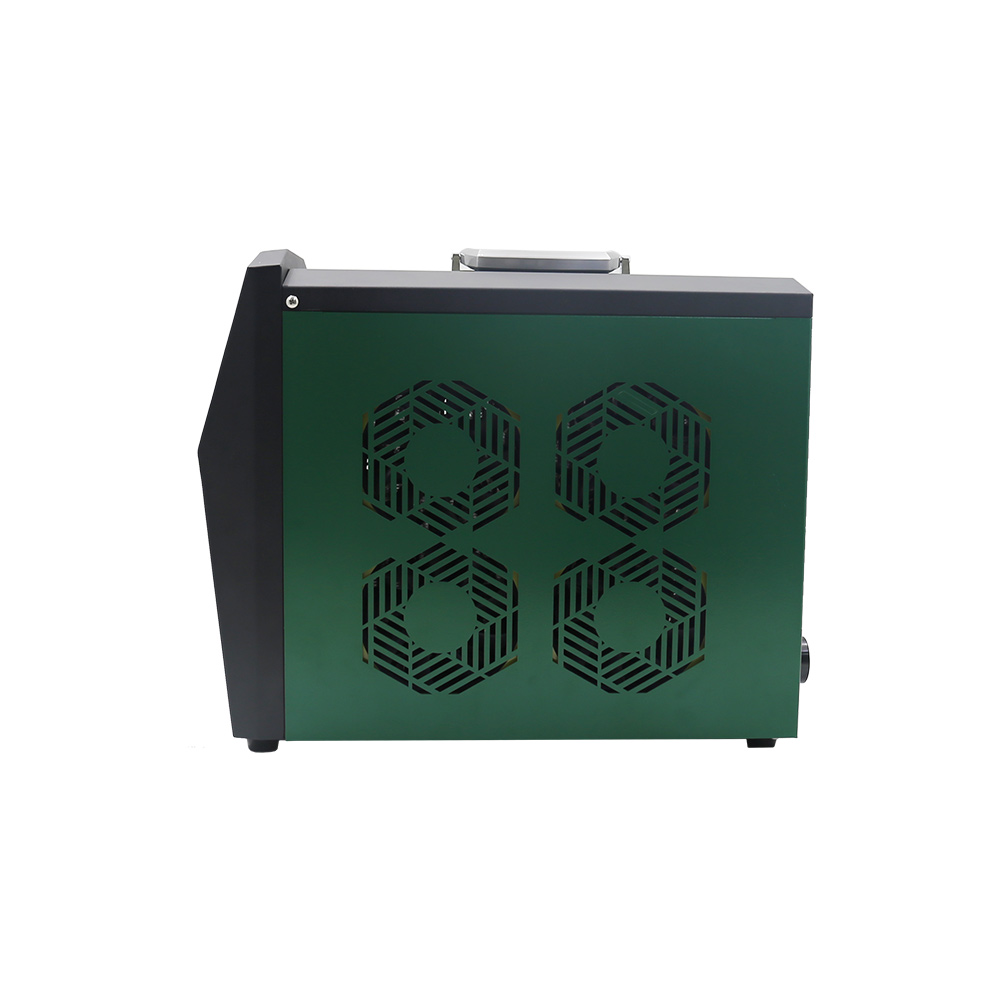

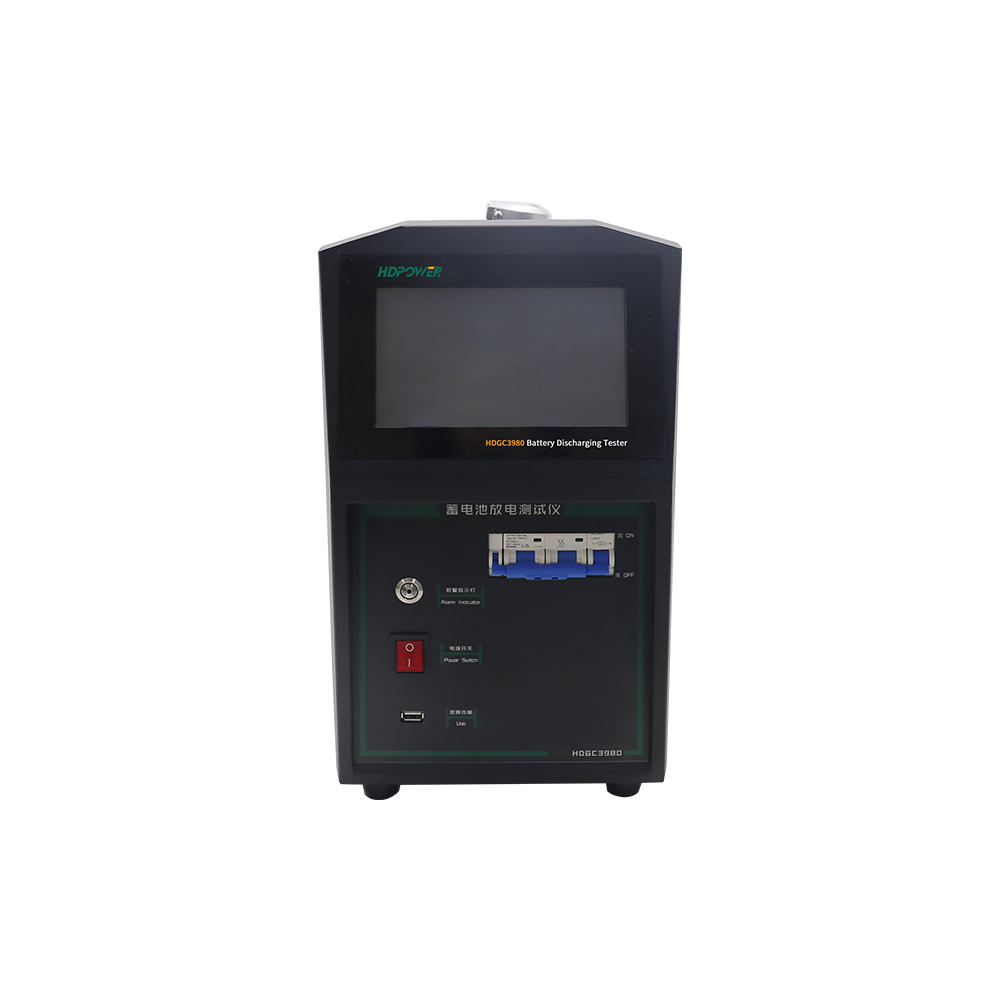

HDGC3980 Battery Discharging Tester (Accurate capacity test)

HDGC3980 series battery discharge tester is used for various battery pack discharge experiment, capacity test and daily maintenance. It can monitor the voltage, discharge current, discharge time, discharge capacity, and other parameters in the discharge process in real time, which has the advantages of easy operation and safe discharge, and is widely used in the fields of telecommunication base station, transformer station, rail transportation, hydroelectric power station and UPS data centre.

Description

Battery discharging testers are essential diagnostic tools used to evaluate the performance, capacity, and reliability of battery systems. These instruments simulate real load conditions to measure remaining battery capacity, verify discharge performance, and identify weak cells before system failure.

HD Power battery discharging testers are designed for industrial battery maintenance, including telecom backup batteries, UPS battery banks, substation DC systems, and energy storage batteries. With intelligent monitoring, constant current/power discharge control, and wireless cell voltage monitoring, these testers provide accurate battery health diagnostics and reliable maintenance solutions.

The HDGC3980 and HDGC3982 series can monitor battery voltage, discharge current, capacity, and discharge time in real time during testing.

Parameter

HDGC3980 Battery Discharging tester
Suit Battery	DC 48V System	DC 110V System	DC 220V System	DC 380V System	DC 480V System
Discharge voltage range	32～60V	88～132V	176~270V	300～460V	380～580V
Discharge current	0~300A	0~100A	0~100A	0~40A	0~30A
Instrument Functionality
Display	7-inch LCD touch screen with 1024 x 800 resolution
Voltage measurement accuracy	±0.5%FS+0.1V
Current measurement accuracy	±1%FS+0.1A
Discharge current display accuracy	0.1A
Data storage	Internal 32G TF storage, external 16G micro-USB card reader
Data communication	RS485、USB
Working mode	Activation, constant-current, constant-voltage, float-charge
Protection performance (LCD display reminder + buzzer alarm)
Host protection function	Over-temperature, over-current, current runaway trigger shutdown protection
Reverse connection protection	Reverse polarity audible and visual alarms
Abnormal protection	Power line drop, mains cable drop
Over temperature protection	Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging
emergency stop	External open circuit breaker for emergency shutdown protection
Working environment
Cooling mode	Forced air cooling
Temperature	Operating temperature : -5～50℃, Storage temperature : -40～70℃.
Humidity	Relative humidity : 0～90%(40±2℃)
Altitude	Available below 4000m
Power supply
Voltage	AC 220V (-20%～+30%), frequency: 45～65Hz.
Withstand voltage	Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min
Safety	Satisfies EN 610950

Products Categories

Get A Free Quote

Applications

Battery Discharge Tester Applications: Battery discharging testers are widely used in industries that rely on large backup battery systems.
Telecommunications Base Stations: Testing and maintaining backup battery banks to ensure reliable communication infrastructure.
UPS Power Systems: Verifying the capacity of UPS batteries to prevent unexpected power failures in data centers and critical facilities.
Electrical Substations: Evaluating DC system batteries that provide emergency power for protection and control equipment.
Railway Power Systems: Maintaining traction and backup battery systems used in rail transportation.
Hydroelectric Power Stations: Ensuring reliable battery operation in control and emergency systems.
Industrial Battery Maintenance: Routine discharge testing for large battery banks used in factories and energy storage systems.

HDGC3980 Battery Discharge Tester Video

Advantages

HD Display

7-inch touch screen with resolution of 1024*800, the military-grade touch panel to reach strong anti-interference ability.

Multi safety protection modes

over-current, short-circuit, high temperature, reverse polarity etc

A number of alarm functions

high voltage, under voltage, current out of the measurement range, fan failure, etc. can issue a real-time warning and stop discharging

Intelligent operation design

automatic recording and intelligent analysis of the entire test

Parallel use function

Multiple units can be used in parallel to meet the demand for larger discharge currents

capacity quick test

the remaining capacity of the battery can be predicted through 3-5 minutes of rapid discharge

Detail Display

Equipped with professional analysis software

simultaneously display data table as voltage,current curves, single cell histogram etc., and automatically generate report in EXCEL/WORD to print.

Powerful storage space

with internal 16G for 1000 groups discharging data and external 16G USB data reader

Discharging termination set via multi conditions

discharge capacity , discharge time ,cell Voltage ,Group Voltage .Automatically stops discharging when any one of the test conditions is met.

Self-calibration function for high measurement accuracy

Curve Viewing Function

data files view in graphs and waveform format.

FAQs

What is a battery discharging tester used for?

A battery discharging tester is used to simulate real load conditions and evaluate battery capacity, performance, and reliability. It helps detect weak batteries and ensures backup power systems function properly.

Why is battery discharge testing important?

Discharge testing verifies the actual capacity of a battery. Over time, batteries degrade and may no longer deliver their rated capacity, which can cause unexpected power failures.

What is constant current discharge testing?

Constant current discharge testing keeps the discharge current stable throughout the test to accurately measure battery capacity and performance.

Can this tester monitor individual battery cells?

Yes. The HDGC3982 model supports wireless battery cell monitoring modules that measure the voltage of each battery cell in real time.

How many battery cells can be monitored?

Each wireless monitoring module can monitor up to 12 cells, and multiple modules can be connected to monitor up to 300 battery cells in a battery bank.

Can multiple testers work together?

Yes. Multiple testers can operate in parallel to achieve higher discharge currents when testing large battery banks.
